Holistic rivets

Silver contacts

product description
Application range
main products
AgCu/Cu, Ag/Cu,AgNi/Cu ,AgSnO₂In₂O₃/Cu ,
AgSnO₂/Cu ,AgCdO/Cu ,AgCuO/Cu ,AgZnO/Cu。
Online orders

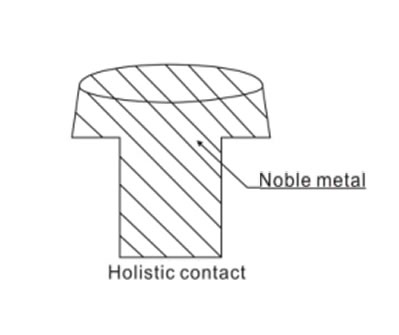

The holistic electrical contact rivet is a contact material widely used in small-capacity low-voltage electrical products, and has excellent electrical properties.

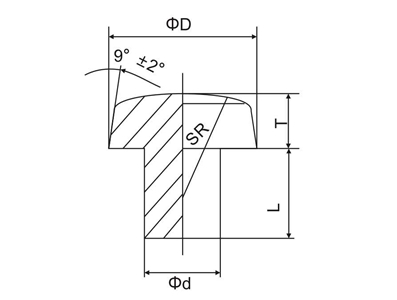

Specifications：

Name	Specification	Allowable deviatio
Head diameteD	Φ2.5-Φ8.0	±0.1
Head thickness T	0.4-3.5	±0.05
Tail diameter d	Φ0.7-Φ5.0	-0.02 0.10
Tail length L	0.6-10	±0.15
SR Round head radius SR	2.5-50	SR≤10 SR>10	± 1 ± 2

Standard size table：

Numbe	D	T	D	L	SR
1	2.5	0.8	1.5	1.0	8
2	3.0	0.8	1.5	1.0	8
3	3.0	1.0	1.5	1.5	8
4	3.5	0.8	2.0	1.0	8
5	3.5	1.0	2.0	2.0	8
6	3.5	1.5	2.0	1.5	8
7	4.0	0.8	2.0	1.5	10
8	4.0	1.0	2.0	2.0	10
9	4.0	1.2	2.0	2.0	10
10	4.0	1.5	2.0	2.0	10
11	4.5	1.5	2.0	1.5	10
12	4.5	2.0	2.5	2.0	10
13	4.8	1.5	2.5	1.5	10
14	5.0	1.0	2.5	2.0	15
15	5.0	1.5	2.5	2.5	15
16	5.0	2.0	2.5	2.5	15
17	6.0	1.5	3.0	2.5	20
18	6.0	2.0	3.0	2.5	20
19	7.0	2.0	3.5	2.5	20
20	8.0	2.5	4.0	3.0	20
